Oil Disc Skimmer are mainly used for light oil recovery. It uses the rotary table to transport the floating oil on the water surface into the oil sump.Ocean Oil Skimmer is composed of hydraulic power station, skimming head (main machine), hydraulic oil pipe, oil pipe, etc. It can be used to recover spilled oil with different viscosity. Oil Disc Skimmer can be widely used to recover spilled oil from oceans, rivers, pools, etc. The power station of Marine Oil Skimmer is driven by diesel engine or motor to work with hydraulic oil pump and oil transfer pump; The main engine of rotary table type oil receiver is composed of rotary table group, oil collecting tank, floating body, etc. The main engine is floating on the water, and the power station is located on the ship or on the shore.
Oil Skimmer
Oil Skimmer

Introduction

Product name: Oil Skimmer
A. Oil Disc Skimmer can recover flowing oil, especially suitable for medium and low viscosity oil.
B The Oil Spill Recovery Skimmer oil collector contains less free water.
C. The Oil Spill Recovery Skimmer is compact in structure, small in volume and light in weight. The skimmer can be manually carried into the site,The power is installed on the four-wheel vehicle, which is convenient for dragging.


Characteristics

1. Boat Oil Skimmer is suitable for recovering spilled oil of various viscosities
2. The recovery operation of Oil Water Skimmer is not affected by the thickness of spilled oil
3. High total recovery rate of floating oil skimmer
5. The wind wave of floating oil skimmer weir has little impact on oil collection efficiency
6. floating oil skimmer weir is suitable for collecting oil in water flow

Function

Brush Oil Skimmer is a mechanical oil spill recovery equipment on water surface. It uses the continuous rotation of the rotary table in the vertical semi immersed liquid to adhere the spilled oil on the rotary table and bring it out of the water surface. Then it scrapes the oil off the rotary table with the oil scraper above the rotary table, flows into the oil sump, and is pumped away to recover the oil.

E-Mail

roy.yu@nonwoven86.com



Telephone

+86-159-0068-2043


Address

No. 188, Shizhong Road, Xukou Town, Wuzhong District, Suzhou, Jiangsu, China

Product Description

The skimming head of the Barrel Oil Skimmer floating on the water surface is made of corrosion-resistant fiberglass, stainless steel or marine aluminum alloy, which can be used for oil spill recovery on the water surface. The structure is solid and durable. Floating body foam filling, double buoyancy guarantee. The Barrel Oil Skimmer can recover the flowing spilled oil such as medium low viscosity lubricating oil, fuel oil, vegetable oil, etc. The rotary disc type oil receiver can adjust the speed of the disc steplessly according to the situation of the oil spill site to reduce the water content of the recovered oil spill.Oil Spill Skimmer is corrosion resistant, solid and durable in structure, and equipped with light diaphragm pump.

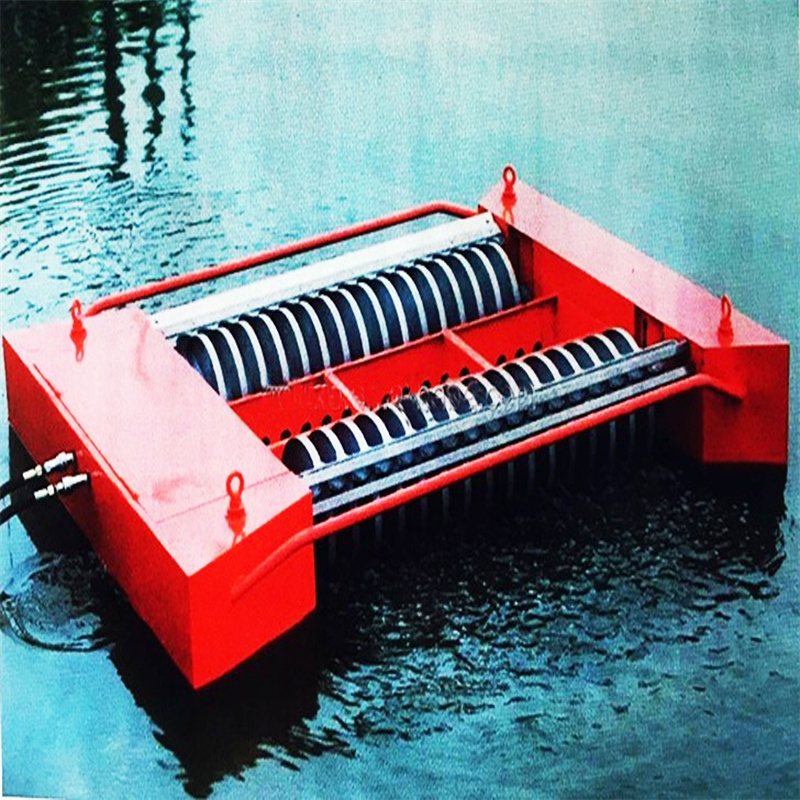

The oil skimmer of Boat Oil Skimmer is of single row straight shaft rotary table group and aluminum welded casing structure. Several turntable groups with flange aluminum alloy turntables are driven by a hydraulic motor. There are two sets of oil scrapers in the rotary table set to scrape the spilled oil adhered to the rotary table into several collecting pipes and then flow into the collecting grooves. The collected oil is pumped out through the pipe at the bottom of the oil sump. The two ends of the aluminum oil sump are welded with trapezoidal left and right aluminum alloy float shells filled with foaming materials. As the float expands outward, the oil skimmer has good stability in water. The hydraulic motor is installed in the float housing at one end. There is a stainless steel pipe to reinforce the casing and act as a handle. There is a flap door on the side of the oil sump for observing its interior. There is also a handle on the side of the oil sump for lifting and tying the oil skimmer. The oil skimmer has been floated in water before leaving the factory, and the balance and underwater depth have been adjusted, which should not be adjusted in general. The counterweights can be installed under the two floater shells for adjustment.
Oil Skimmer
Oil Skimmer
The Marine Oil Skimmer is equipped with two high-pressure hydraulic hoses connecting the hydraulic motor of the oil skimmer and the power station manifold block. There is a steel wire reinforced transparent plastic hose connecting the suction port of the pumping pump and the oil drain port of the oil skimmer, which can observe the internal liquid flow from the outside; The pipe is equipped with a float to float on the water surface without affecting the balance of the oil skimmer; Both ends of the suction pipe are connected to the oil skimmer and the power station with quick change connectors. There is a discharge pipe connected to the discharge outlet of the pump.​​​​​​​
Oil Skimmer
Oil Skimmer
Oil Skimmer

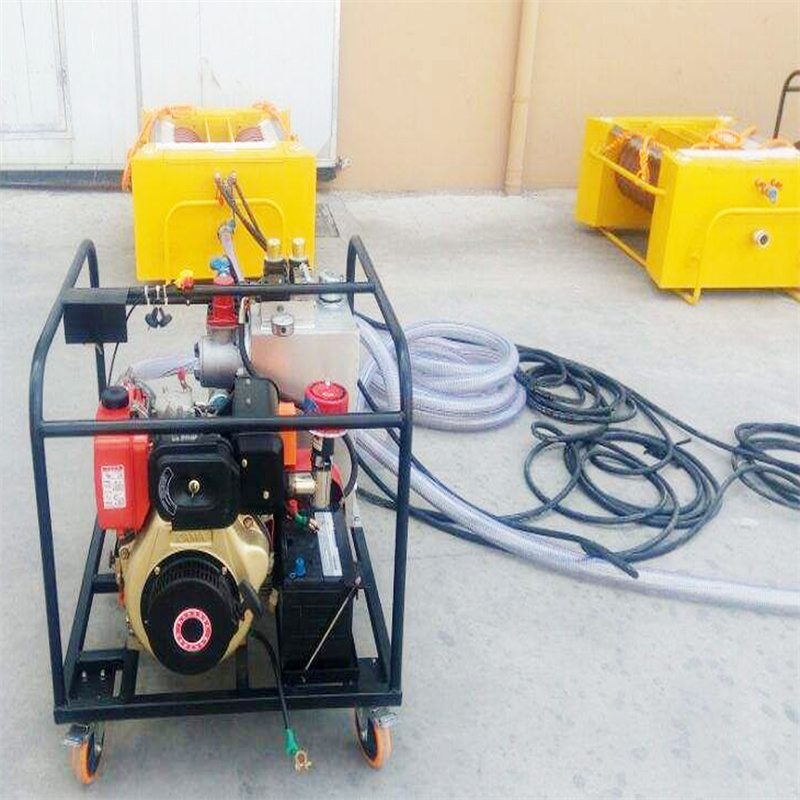

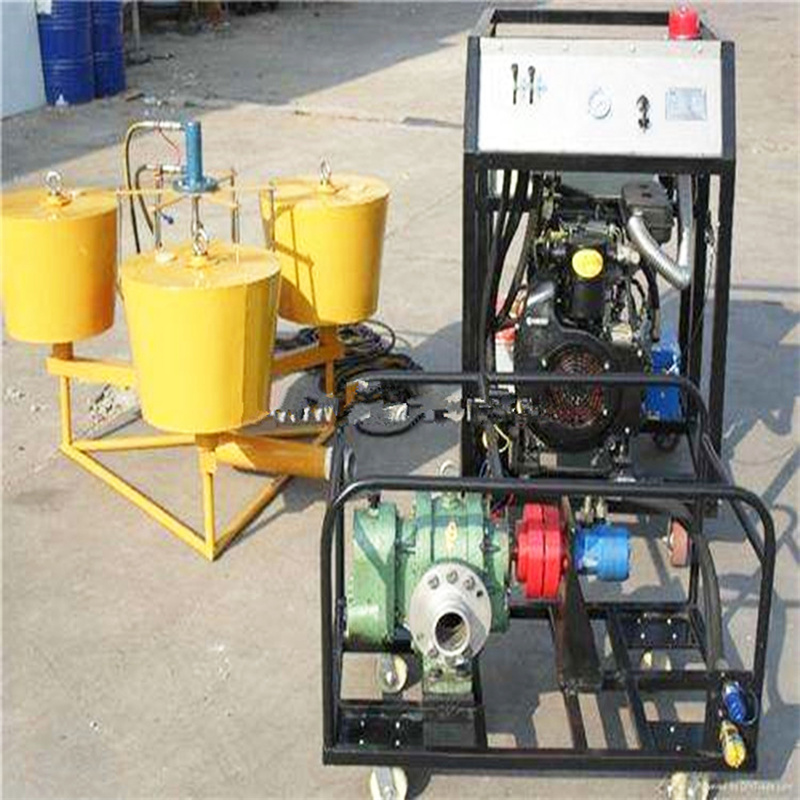

The Brush Oil Skimmer consists of a power machine, a pumping pump and a hydraulic station, which are mounted on a four-wheel frame. The power engine of Oil Spill Skimmer is diesel engine. The pumping pump of rotary disc type oil receiver has strong self-priming capacity, allowing a small amount of solid particles to pass through. The pump is directly connected to the power machine. The hydraulic station of Drum Oil Skimmer includes hydraulic pump, oil tank and manifold block, which are connected by hydraulic pipeline. The hydraulic pump is driven by a power machine; The oil tank and manifold block are equipped with oil suction filter (primary filter), air filter, pressure gauge switch, pressure gauge, temperature level gauge, stop valve (for diesel engine startup), overflow valve, speed control valve and oil return filter (fine filter); The manifold block is provided with a hydraulic oil inlet which supplies oil to the hydraulic motor of the oil skimmer, and the oil return filter is provided with a hydraulic oil outlet which is connected with the hydraulic motor of the oil skimmer.​​​​​​​
